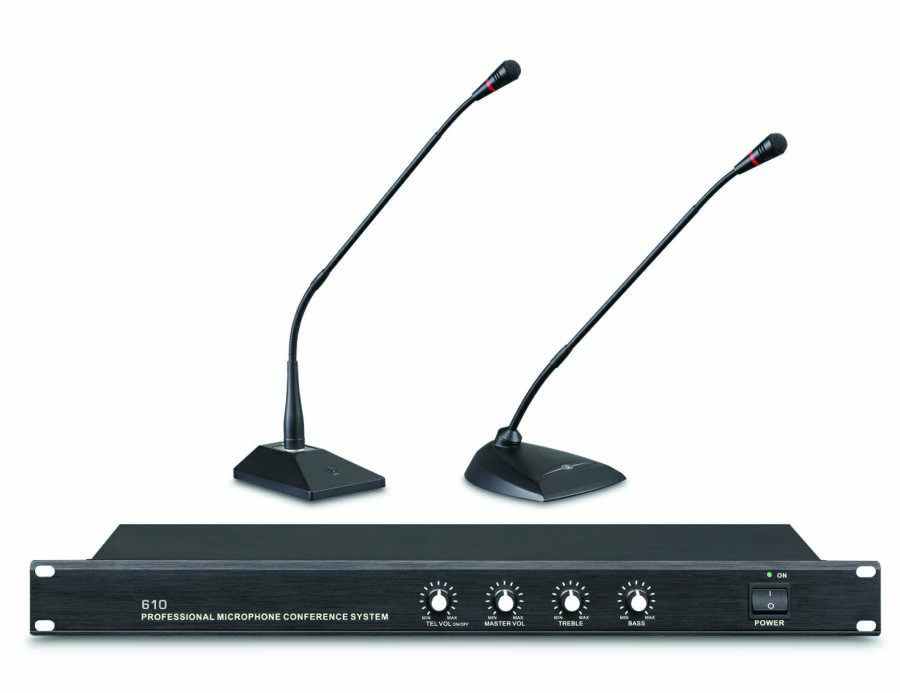

• Name:BK-610
  • Product number:BK-610

610 SYSTEM function/SYSTEM FEATURES

S the easiest conference system, hand in hand in the industry

S built-in phone coupling input and output port, can be used to remote telephone meeting according to

Communication principle of telephone communication two-way voice signal into the input, output, in order to control

The meeting between the intercom can set the phone call and set aside.

S every 40 receiver unit, the CPU can connect two serial output.

S has to speak at the same time limit mode optional M3 and M6.

S equipped with audio output, non equilibrium output and audio output interface

The system Technical characteristics/Technical parameters

Model: 610

Rated voltage: AC220V plus or minus 10% 50 hz

Maximum output: 50 w

Static electricity: 60 m A

Connecting cable: circular DIN - 8 px2

Audio input: RCA * 2

Audio output: 6.3 mm * 1, XLR * 1

Frequency response: 100 hz to 12.5 KHz

Signal-to-noise ratio: 68 d B

Weight: 4.7 Kg

Size: 485 * 220 * 44 mm

Color: black
